Talawade, Pune - 411062
Manufacturer, Supplier Of Current Transformers
We are Manufacturer, Supplier, Exporter Of Low Tension Current & Voltage Transformers, Current Transformers, LT (Low Tension) Tape Wound Current Transformers, Cast Resin Transformers, Core Balance Current Transformers, Ring Type Oil Immersed Bushing CT'S, ABS Moulded Case CT'S, L.T. Voltage Transformers, LT (Low Tension) Control Transformers, Dry Type Transformers and our set up is in Pune, Maharashtra, India

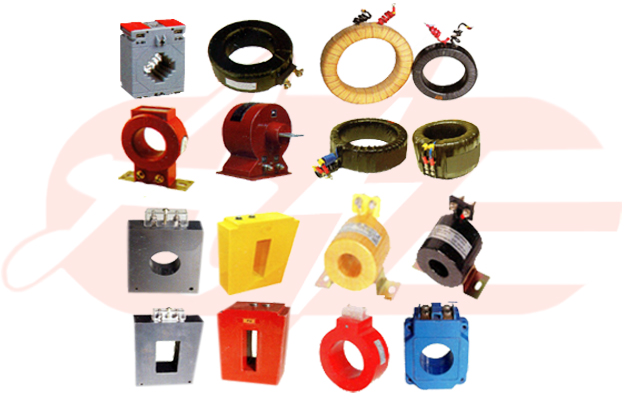

Low Tension Current & Voltage Transformer Upto 660 V
Current Transformers:
We are specialized in offering quality L.T. Tape Wound & Cast Resin Transformers of multi range that is manufactured using quality components, which are procured from reliable vendors. These are acknowledged among clients for long functional life, high efficiency, hassle free performance and robust construction. These are widely used in various industries for measuring, protection & for special protections purpose (CLASS: PS) (restricted earth fault & differential protection systems)
We are specialized in offering quality L.T. Tape Wound & Cast Resin Transformers of multi range that is manufactured using quality components, which are procured from reliable vendors. These are acknowledged among clients for long functional life, high efficiency, hassle free performance and robust construction. These are widely used in various industries for measuring, protection & for special protections purpose (CLASS: PS) (restricted earth fault & differential protection systems)
● Application : Metering Protection (O/C & E/F)
Differenctial Proction & core balance
● Type : Ring & Bar
● Construction : Tape Wound & Resin Cast
● Primary Current Rating : upto 2000A
● Secondary Current Rating : 0.577A, 1A & 5A
● High Voltage Level : 3KV
● Accuracy Class : 0.2, 0.5, 1.0, 0.3, 0.2s, 0.5s
● Burden : upto 40VA & Customer Requirement LTCT's &
VT's Can be supplied as per customer specication
● Standard : IS 2705 & IS 3156

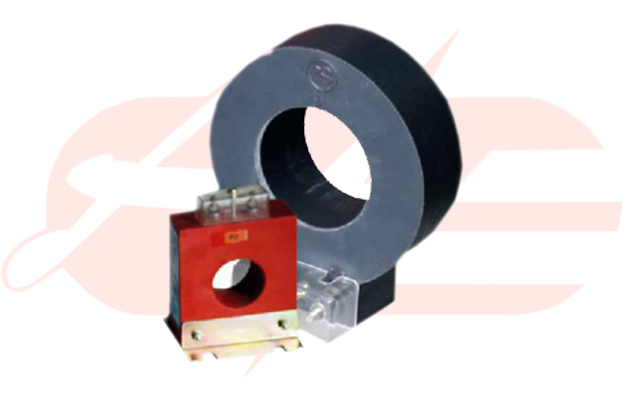

Core Balance Current Transformers:
The CBCTor the Core Balance Current Transformer is a current Transformer is used for earth falut protection in grounded three phase systems. it is also known as in the zero-sequence cuttent transformer. The CBCT is a current transformer through all the three phases are made to pass as in the digram. Thus the magnetic fluxes caused by the three phase currents cancel each other.
The nrt resultant flux being zero does not induce any currrent in the secondary of the transformer. Thus the secondary current of the core balance current transformer when all the three phases are healthyin zero.
When and earth fault occurs in one of the phases, the zrro-sequence fault current which flows is not cancelled by the flux of the other two phases and hence induces a current in the secondary. The core balance current transformer can be connected to an eath fault relay which can be used to generate the rripping signal.
The CBCTor the Core Balance Current Transformer is a current Transformer is used for earth falut protection in grounded three phase systems. it is also known as in the zero-sequence cuttent transformer. The CBCT is a current transformer through all the three phases are made to pass as in the digram. Thus the magnetic fluxes caused by the three phase currents cancel each other.
The nrt resultant flux being zero does not induce any currrent in the secondary of the transformer. Thus the secondary current of the core balance current transformer when all the three phases are healthyin zero.
When and earth fault occurs in one of the phases, the zrro-sequence fault current which flows is not cancelled by the flux of the other two phases and hence induces a current in the secondary. The core balance current transformer can be connected to an eath fault relay which can be used to generate the rripping signal.

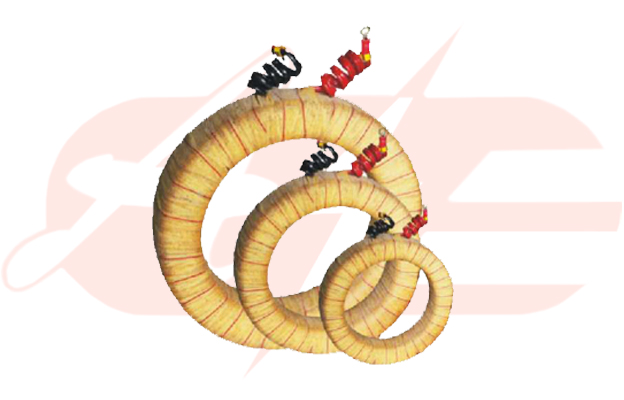

Ring Type Oil Immersed Bushing CT'S:
These CTs are used in distribution and power transformers upto 500MVA capacity and voltage class upto 400kV
Key Features:-
● Mounted inside the transformers tank
● It replaces the outdoor CT in the switchyard hence cost effective and maintenance free.
● The Cts are manufactured in single as well as multi core and multi ratio.
These CTs are used in distribution and power transformers upto 500MVA capacity and voltage class upto 400kV
Key Features:-
● Mounted inside the transformers tank
● It replaces the outdoor CT in the switchyard hence cost effective and maintenance free.
● The Cts are manufactured in single as well as multi core and multi ratio.

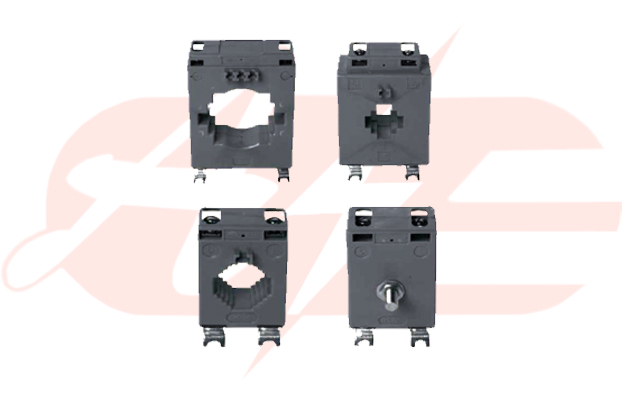

ABS Moulded Case CT'S:
● Compact design to suit your requirements
● Available in 8 standard sizes
● Primary current up to 5000 Amps
● Upto Class 0.2 accuracy
● Easy for mounting
● Built-in bus-bar mounting facility
● Made from fire-retardant ABS material
Note : For detail dimensions and specification refer Separate Leaflet.
● Compact design to suit your requirements
● Available in 8 standard sizes
● Primary current up to 5000 Amps
● Upto Class 0.2 accuracy
● Easy for mounting
● Built-in bus-bar mounting facility
● Made from fire-retardant ABS material
Note : For detail dimensions and specification refer Separate Leaflet.

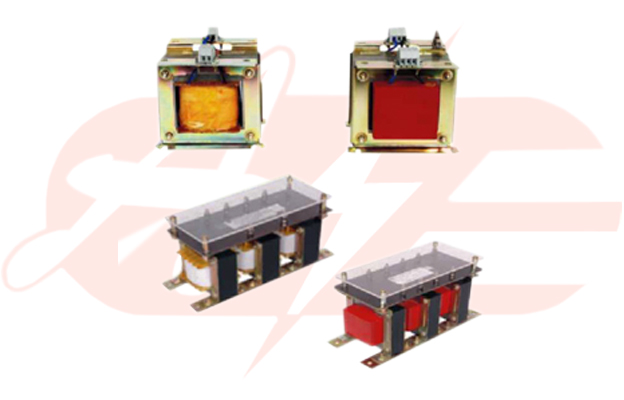

L.T. Voltage Transformers :
We manufacture L.T. Voltage Transformers in Tape insulated & Cast resin types. These are widely used in various industries for measuring & protection purposes.
We provide various types of L.T. Voltage Transformers as per relevant Standards (IS/IEC...) as follows:
● Single/Three phase voltage transformer
● Interposing voltage transformer (IVT)
Technical Details:
● For metering Accuracy class: 0.2, 0.5,1
● For Protection: 3P, 6P
● Temperature: insulation class as per IS /IEC
● System voltage 1.1KV
We manufacture L.T. Voltage Transformers in Tape insulated & Cast resin types. These are widely used in various industries for measuring & protection purposes.
We provide various types of L.T. Voltage Transformers as per relevant Standards (IS/IEC...) as follows:
● Single/Three phase voltage transformer
● Interposing voltage transformer (IVT)
Technical Details:
● For metering Accuracy class: 0.2, 0.5,1
● For Protection: 3P, 6P
● Temperature: insulation class as per IS /IEC
● System voltage 1.1KV

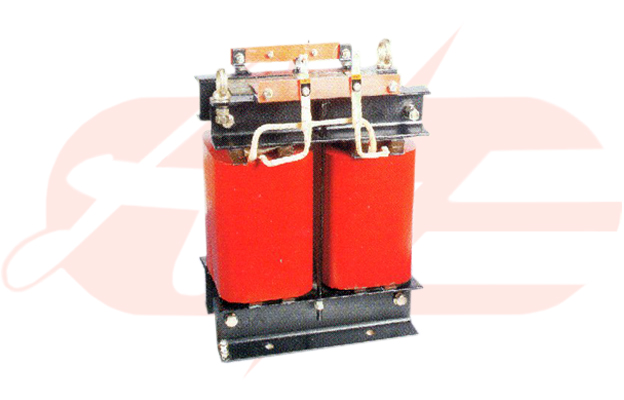

LT Control Transformers :
We manufacture LT Transformers that are widely demanded by clients for effective performance, low regulation, high efficiency, good power back up, easy installation and flawless performance. These are insulated with VPI/Epoxy Resin to ensure hassle free functioning. We also offer customized solutions to clients as per their varied requirements. It has been used for Isolation, lighting load, control circuit, thyristor, rectifier circuit etc…
Acotrol transformer is a transformer which supplies power to control and / or auxiliary equipment not intended for direct connection to the main circuit. Control Transformers are specificailyused to provide control supply voltages for the control circuits of AC motor starters
We manufacture LT Transformers that are widely demanded by clients for effective performance, low regulation, high efficiency, good power back up, easy installation and flawless performance. These are insulated with VPI/Epoxy Resin to ensure hassle free functioning. We also offer customized solutions to clients as per their varied requirements. It has been used for Isolation, lighting load, control circuit, thyristor, rectifier circuit etc…
Acotrol transformer is a transformer which supplies power to control and / or auxiliary equipment not intended for direct connection to the main circuit. Control Transformers are specificailyused to provide control supply voltages for the control circuits of AC motor starters

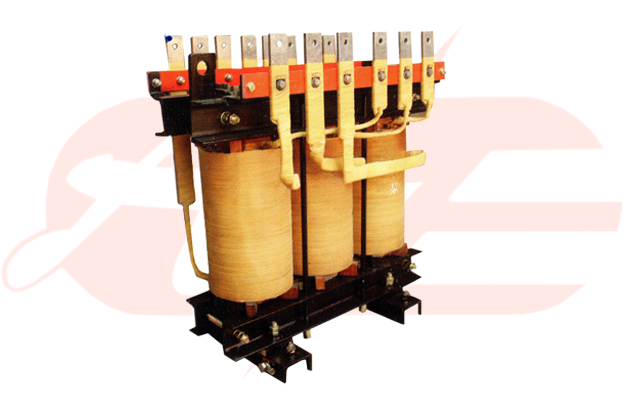

Dry Type Transformers :
We manufacture L.T. Dry Type transformers that are widely demanded by clients for effective performance, low regulation, high efficiency, good power backup, easy installation and flawless performance. These are insulated with VPI/Epoxy Resin to ensure hassle free functioning.
As per the recent trend, Dry Type transformers are installed in high rise buildings and Public Utility areas, due to its high fire safety.
Apart from the failure proofness of the design, Dry type transformers are known for their low inflammability and least smoke generation properties. These transformers meet strict parameters with respect to electrical system demands and functioning in areas with extreme climatic conditions.
We also offer customize solutions to clients as per their varied requirements. It has been used for Isolation, lighting load, control circuit, thyristor, rectifier circuit ect....
We manufacture L.T. Dry Type transformers that are widely demanded by clients for effective performance, low regulation, high efficiency, good power backup, easy installation and flawless performance. These are insulated with VPI/Epoxy Resin to ensure hassle free functioning.
As per the recent trend, Dry Type transformers are installed in high rise buildings and Public Utility areas, due to its high fire safety.
Apart from the failure proofness of the design, Dry type transformers are known for their low inflammability and least smoke generation properties. These transformers meet strict parameters with respect to electrical system demands and functioning in areas with extreme climatic conditions.
We also offer customize solutions to clients as per their varied requirements. It has been used for Isolation, lighting load, control circuit, thyristor, rectifier circuit ect....
